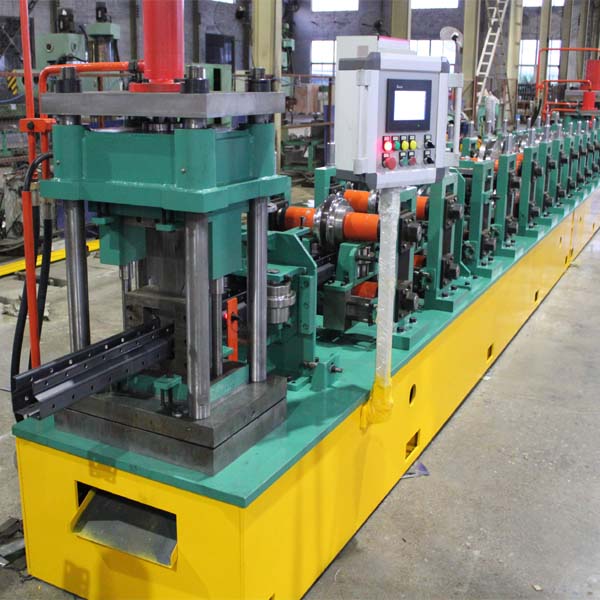

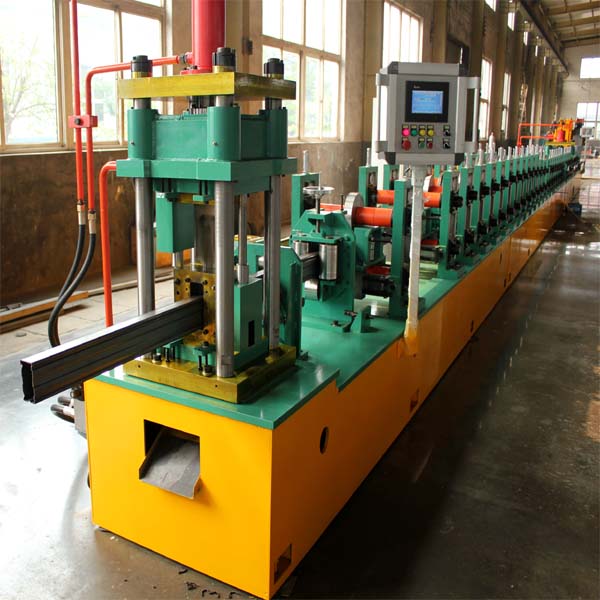

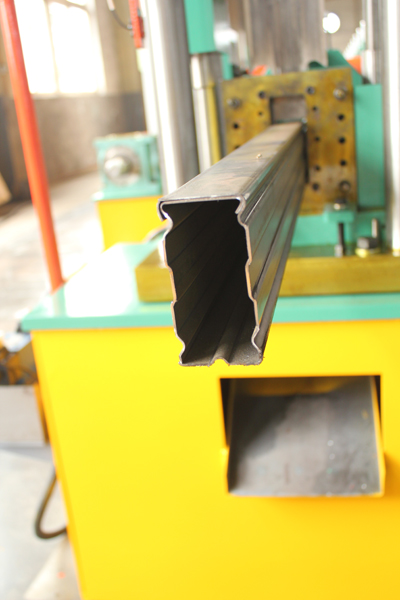

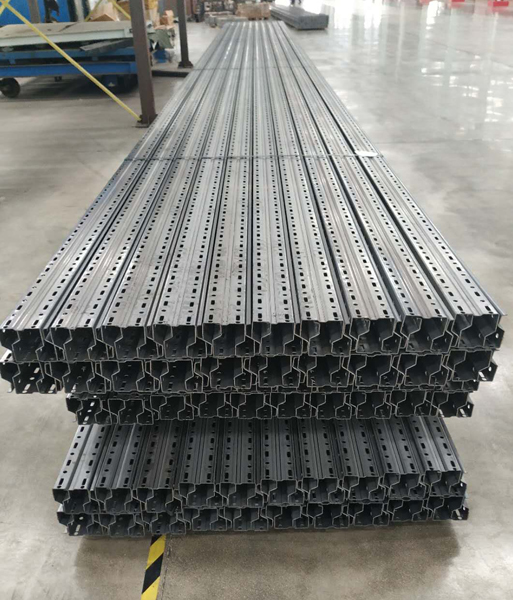

Equipment Name: Shelf column rolling production line
Equipment use:
The production line is used for continuous production of punching, roll forming and fixed length cutting of intelligent three-dimensional storage shelf column profiles. It can produce various specifications and sizes by adjustment, saving production sites, improving production efficiency and maximizing savings for customers. reduce Cost of production.
Main process flow:

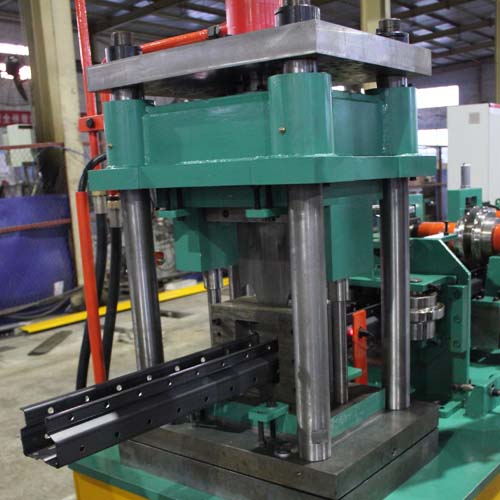

Hydraulic unwinding → leveling → cold forming → hydraulic punching in the process → discharge straightening → PLC fixed length → hydraulic cut → receiving.
Equipment name: integrated beam rolling production line
Equipment use:
The production line is used for continuous production of punching, roll forming and fixed length cutting of intelligent three-dimensional storage shelves. The production can be produced in various sizes, saving production sites and improving production efficiency. The degree of production costs is saved.
Main process flow:
Hydraulic unwinding → leveling → hydraulic pre-cutting → cold bending forming → discharge straightening → PLC fixed length → hydraulic cut → receiving.
MAIN PARTS USED FOR THE MACHINE
| NO |
ITEM |
BRAND OR MANUFACUTRE |
| 1 |
PLC、HMI |
SIMENS |
| 2 |
SENSOR |
OMRON OR AUTONIX |
| 3 |
SEVO MOTOR |
INVT |
| 4 |
MAIN ELECTRONIC PART |
SCHNEIDER AND OMRON |
| 5 |
- THREE-PHASE ASYNCHRONOUS MOTOR
|
SHANDONG KAIYUAN |
| 6 |
BEARING |
HWL CHINA |
| 7 |
GEAR BOX |
TAILONG IN CHINA |
| 8 |
|
QINGFENG |
| 9 |
ARC WELD |
PANISONIC |
